RAD NOSE EXTENSIONS
RANGE: 300 – 4,600Nm

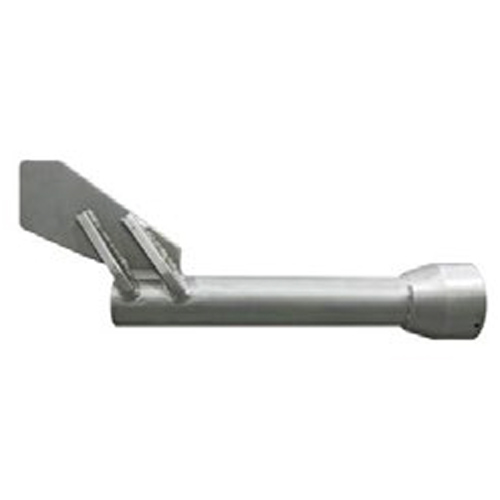

Designed with flexibility in mind for all hard to reach applications. The Separate Nose Extension has a paddle welded onto the end of the Nose Extension.
Product Data Sheets available below:
Tool Dimensions
| PRODUCT No. | SUITABLE FOR | Dim.A | Dim.B | Dim.C | Dim.D | REACTION ARM |
|---|---|---|---|---|---|---|
| 14195 | 14 GX | n/a | 324 mm | 44 mm | n/a | 11842 |
| 14200 | 14 GX | n/a | 400 mm | 44 mm | n/a | 11842 |
| 14205 | 14 GX | n/a | 476 mm | 44 mm | n/a | 11842 |
| 18185 | 20 DX | n/a | 349 mm | 51 mm | n/a | 20153 |
| 19058 | 20 DX | n/a | 400 mm | 51 mm | n/a | 20153 |
| 19059 | 20 DX | n/a | 476 mm | 51 mm | n/a | 20153 |
| 12096 | 34 GX | 127 mm | 330 mm | 51 mm | 83 mm | Fixed |
| 12061 | 34 GX | 127 mm | 406 mm | 51 mm | 83 mm | Fixed |
| 12097 | 46 GX | 127 mm | 470 mm | 51 mm | 83 mm | Fixed |
| 11750 | 46 GX | 142 mm | 318 mm | 51 mm | 86 mm | Fixed |
| 11751 | 46 GX | 142 mm | 394 mm | 51 mm | 86 mm | Fixed |
| 11752 | 46 GX | 142 mm | 470 mm | 51 mm | 86 mm | Fixed |
